GRUNDFOS PUMP SEAL HOLE 90MM
The GRUNDFOS PUMP SEAL HOLE 90MM refers to a mechanical seal assembly or seal chamber cover specifically engineered for Grundfos CR vertical multi-stage pumps, designed to accommodate a 90mm diameter shaft seal. This critical component houses a cartridge-type mechanical seal, typically featuring a silicon carbide (SiC) versus silicon carbide (SiC) seal face pairing for superior abrasion resistance in handling clean, particle-laden, or mildly aggressive fluids. The assembly is precision-machined to ensure exact alignment, which is paramount for eliminating shaft runout and preventing seal face deflection. It is engineered for operation within the standard pressure and temperature ratings of the CR pump series, ensuring full compatibility and maintaining the hydraulic performance and reliability specified by Grundfos. This unit is a direct OEM replacement, guaranteeing correct installation, optimal seal life, and leak-free operation.
Related Mechanical Seals
| Mechanical seals |
| 1. Auto Cooling Pump Mechanical Seal |
| 2. Mechanical Seals for Sanitary Pumps |
| 3. Flygt Pumps Mechanical Seals |
| 4. Metal Bellow Mechanical Seals |
| 5. PTFE Wedge Mechanical Seals |
| 6. O-ring Mechanical Seals |
| 7. Elastomer Bellow Mechanical Seals |
| 8. Cartridge Mechanical Seals |
Product Specifications
| Product name | Pump Mechanical Seal suitable for Grundfo Pump |
| Item No. | RS |
| Materials | 1.Stationary Ring: Carbon/SIC/TC; 2. Rotary Ring: SIC/TC; 3. Retainer: SUS304/SUS316; 4. Spring: SUS304/SUS316; 5. O-Ring: NBR/EPDM//PTFE |
| Medium | Water,oil and other weak corrosive medium |
| Temperature | -20~+150°C |
| Pressure | ≤0.6MPa |
| Linear velocity | ≤10m/s |
| Application | Rotating equipment,pumps,mixers,agitators and compressors |
Advantages
| --- Advantages |
| 1. Wear resistant products |
| 2. Superior sealing effects |
| 3. Low friction |
| 4. Easy replacement |
| 5. Strong QC and R&D teams to assure high quality products |
| 6. Reasonable factory price |
| 7. Small order quantity is welcomed |
| 8. Can help you develop the design based on your idea |
| 9. Customized specifications are welcome |
| 10. OEM and ODM orders are warmly welcome |

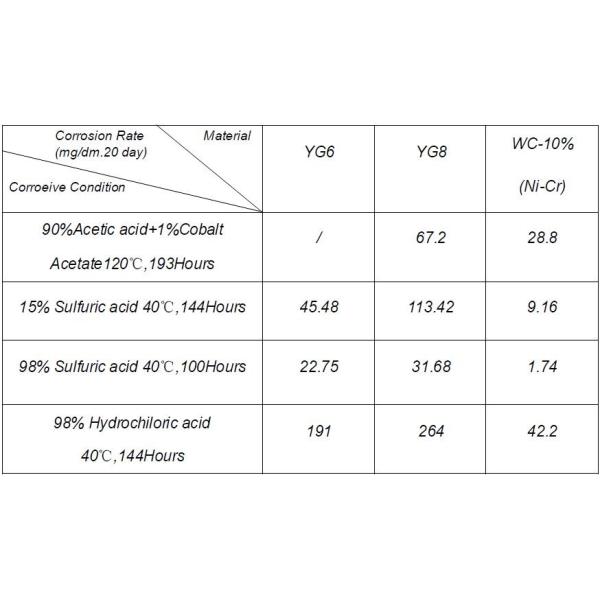

Sealing Ring Main Performance Index
| Tungsten Carbide Sealing ring |
| Density(g/cm3) | 14-15 |
| Hardness(HS) | 87-91 |
| Elastic Modulus(MPa) | 608100 |
| Bend Strength(MPa) | 1420-2058 |
| Coefficient of Heat Expansion(10-6/°C) | 4.5-6.3 |
| Thermal Condutivity(cal/cm.s.°C) | 0.17 |
| SIC Sealing ring |
| Density(g/cm3) | 3.00-3.10 |
| Hardness(HS) | 110-125 |
| Elastic Modulus(kg/mm2) | 42*103 |
| Tensile Strength(kg/mm2) | 28 |
| Bend Strength(kg/mm2) | 34 |
| Compressive Strength(kg/mm2) | 120 |
| Thermal Condutivity(cal/cm.s.°C) | 0.3 |
Frequently Asked Questions
Q1: What is the primary function of the mechanical seal in a Grundfos CR pump with a 90mm seal hole?
A1: The mechanical seal's primary function is to create a hermetic, leak-free seal between the stationary pump casing (the seal housing or gland) and the rotating shaft, preventing the pumped fluid from escaping into the atmosphere and preventing air from entering the pump.
Q2: What are the standard seal face materials for a Grundfos CR pump mechanical seal, and why are they chosen?
A2: The standard configuration for clean water applications is a pairing of Silicon Carbide (SiC) versus Silicon Carbide (SiC). This is chosen for its exceptional hardness, excellent wear resistance, high thermal conductivity, and superior chemical inertness, which ensures long seal life and reliable operation.
Q3: What is the critical preparatory step before installing a new mechanical seal into the 90mm seal housing?
A3: The most critical step is to meticulously clean and inspect the seal housing bore and the shaft sleeve. Any burrs, corrosion, or old gasket material must be removed to ensure a perfectly clean, smooth surface. The shaft sleeve must also be checked for scoring or wear, as any imperfections will compromise the seal's integrity.
Q4: How is the correct axial installation position of the cartridge mechanical seal achieved?
A4: Cartridge seals are pre-assembled and preset. Correct installation is achieved by following the manufacturer's instructions to bottom out the cartridge on the shaft, then tightening the clamping collar. The installation fixtures or tabs are then removed, and the seal is automatically at its designed operating length. No manual setting of the spring compression is required.
Q5: What is the most likely cause of a repetitive, premature failure of a mechanical seal in this application?
A5: The most common cause is face deflection due to improper gland (seal housing) flatness or excessive pipe strain. If the 90mm gland is not perfectly flat or the pump is misaligned due to piping stress, it induces uneven pressure on the seal faces, causing them to open slightly and leak, or wear prematurely. Dry running, resulting in heat checking of the seal faces, is another primary cause.
